For the application of the blender machine, the whole machine program uses MCU (SC32F5832) + IPM (SDM15G60FB). The whole machine scheme is compatible with high speed FOC single resistance control without or with Hall. The scheme with Hall can be adapted to various motors of different manufacturers, which is convenient for debugging. The sensorless scheme reduces the overall cost of electronic control, and has the advantages of fast start-up speed and strong load capacity.


Topology

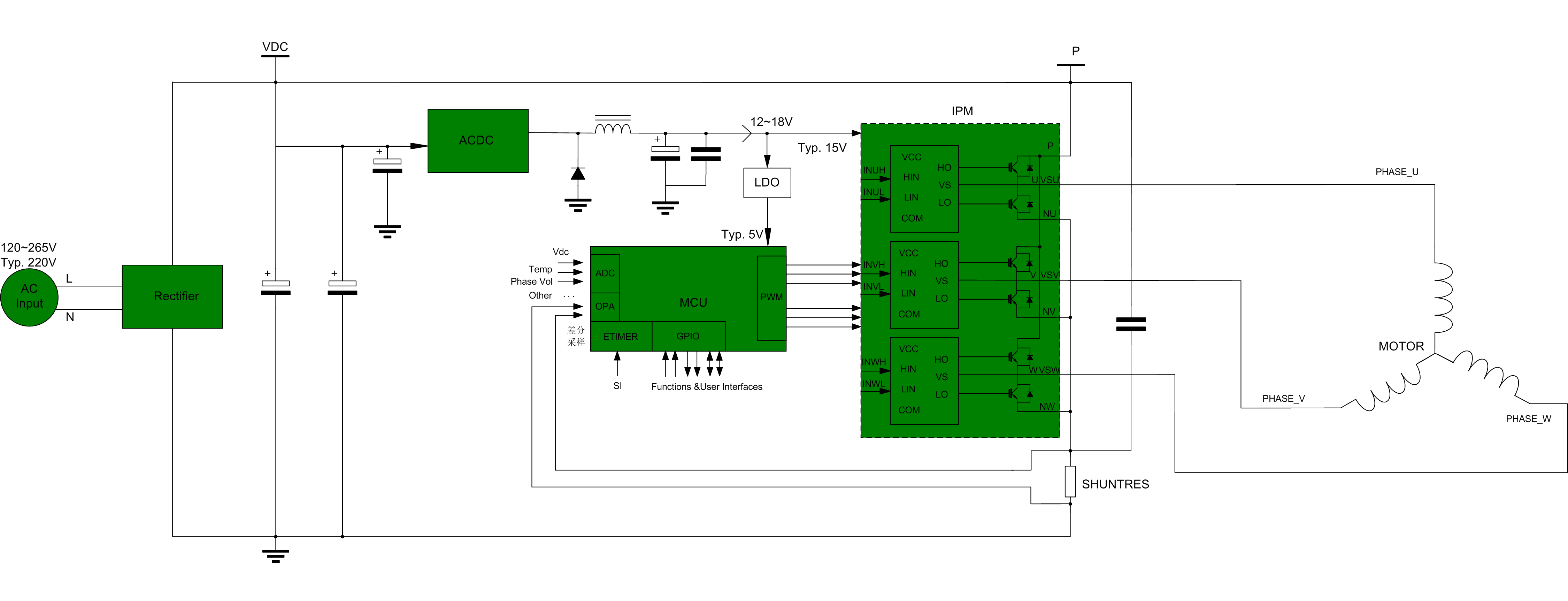

The main hardware topology diagram of the wall breaker scheme is as follows:

破壁機(jī)拓?fù)?png

Product
Topological classification product category Typical product model Typical package product description
IPM IPM SDM15G60FB DIP-24HL 600V/15A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
IPM IPM SDM30G60FB DIP-24HL 600V/30A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
Application&Information
title Types of Size (KB) date Download the latest Chinese version
SilanPro_User Manual PDF 3072 2020-04-03 SilanPro_User Manual_1.3
