SAP2003
DARLINGTON TRANSISTOR ARRAYS

The SAP2003 is a high-voltage, high-current Darlington transistor array. It consists of seven NPN Darlington pairs, all units feature a common emitter. The device has a 2.7kΩ series base resistor for each Darlington pair for operation directly with TTL and 5V CMOS devices.

The SAP2003 is capable of sinking up to 500mA, and the maximum operating voltage reaches 50V. The Darlington pairs may be connected in parallel for higher current capability.


Main feature

Wide operating voltage range

Seven Darlingtons

High voltage outputs (50V)

High current outputs (500mA for single output)

TTL and CMOS compatible inputs

Built-in clamp diodes for inductive loads


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

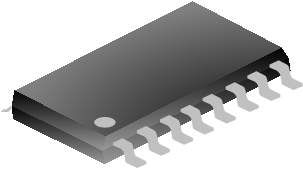

SAP2003SC SOP-16-225-1.27 SAP2003SC Halogen free Tube
SAP2003SCTR SOP-16-225-1.27 SAP2003SC Halogen free Tape&Reel

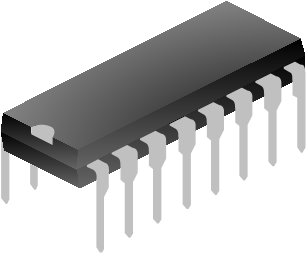

SAP2003DC DIP-16-300-2.54 SAP2003DC Halogen free Tube

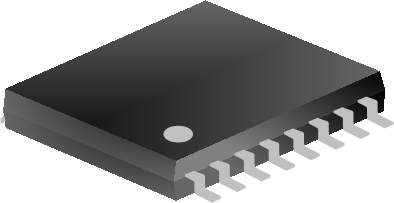

SAP2003JS TSSOP-16-225-0.65 SAP2003JS Halogen free Tube
SAP2003JSTR TSSOP-16-225-0.65 SAP2003JS Halogen free Tape & Reel

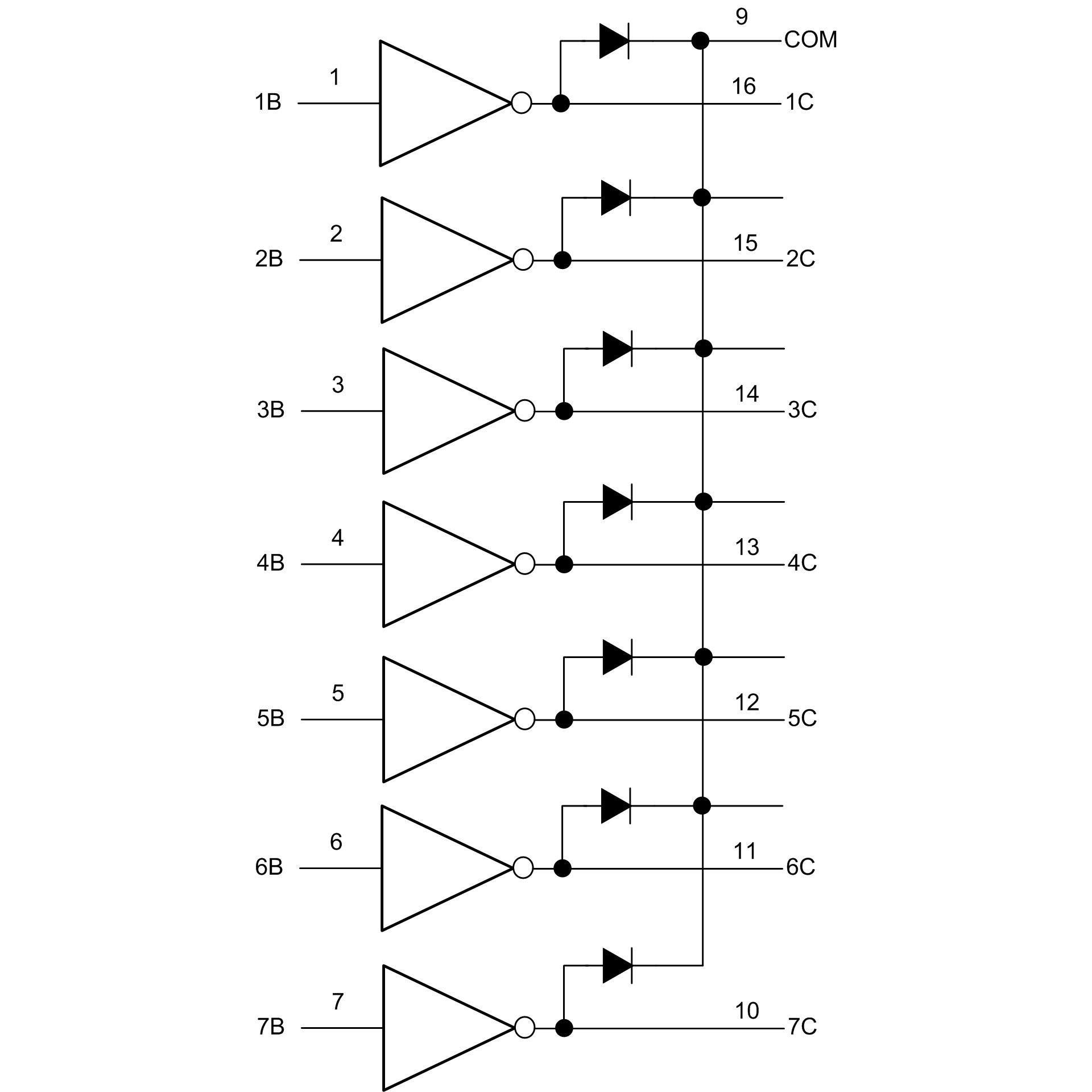

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SAP2003 0 1970-01-01 SAP2003 Brief Datasheet
