SLP74LVT16244B
3.3V 16-BIT BUFFER WITH 3-STATE OUTPUTS

The SLP74LVT16244B is a 16-bit high performance bus buffer and line driver. The device is designed for 2.7V to 3.6V VCC operation, but with the capability to provide TTL interface to a 5V system.

The device has four groups of 4-bit independent line drivers with 3-state outputs. When the input of nOE— is high, the associated 4-bit output is in the high-impedance state.


Main feature

  • 16-bit bus buffer

  • Output capability: +64mA and -32mA

  • TTL input and output switching levels

  • Bus hold data inputs without the need of external pull-up resistors

  • Input and output interface capability to systems at 5V supply

  • Live insertion and extraction permitted

  • No bus current loading when output is tied to 5V bus

  • Power-up 3-state

  • ESD protection:

  • 2000-V Human-Body Model

  • 1000-V Charged-Device Model

  • Specified from -40°C to +85°C

  • Latch up performance:100mA


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVT16244BJZ TSSOP-48-300-0.5 LVT16244B Halogen free Tube
SLP74LVT16244BJZTR TSSOP-48-300-0.5 LVT16244B Halogen free Tape & Reel

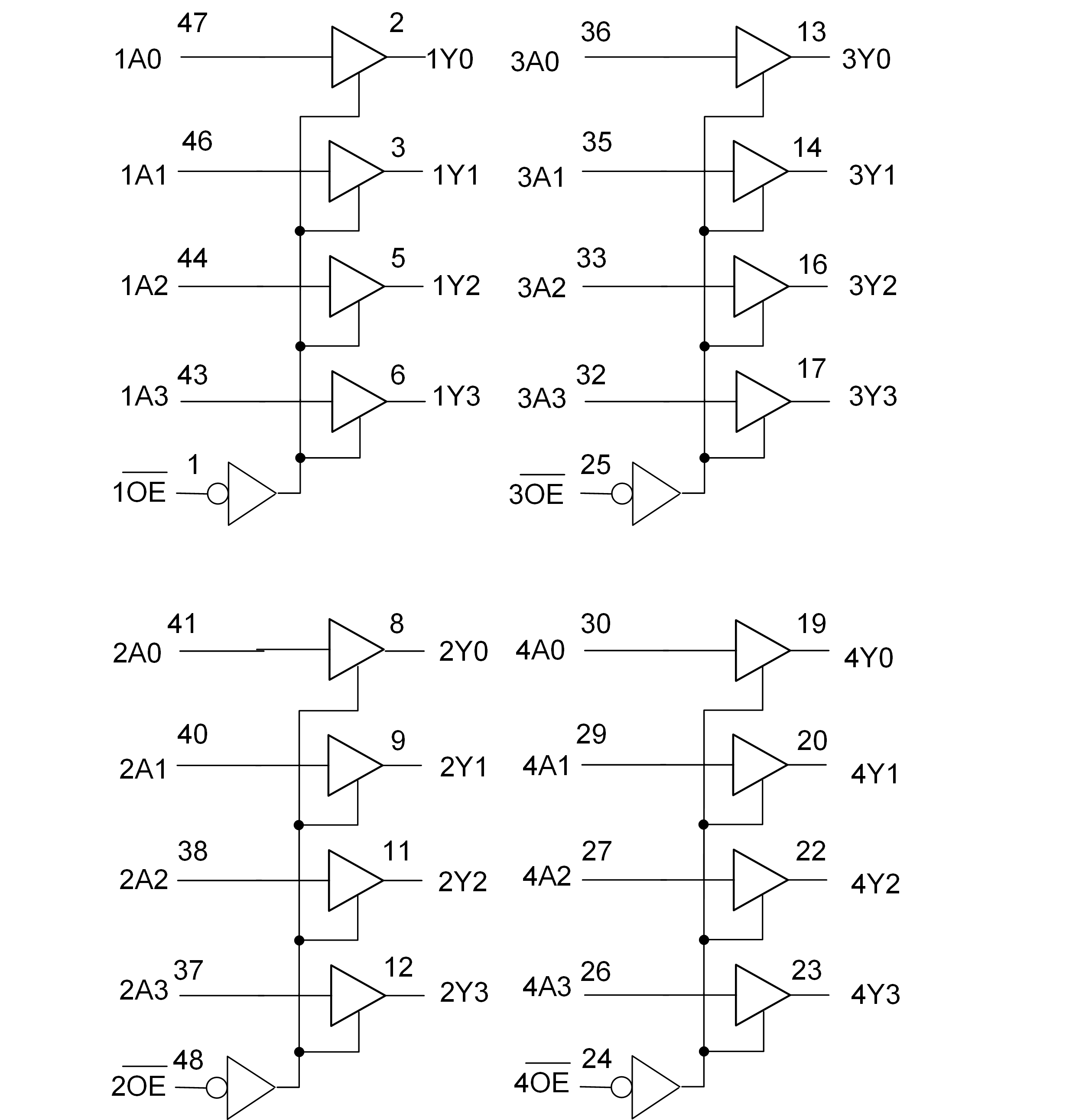

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SLP74LVT16244B 0 1970-01-01 SLP74LVT16244B Brief Datasheet
